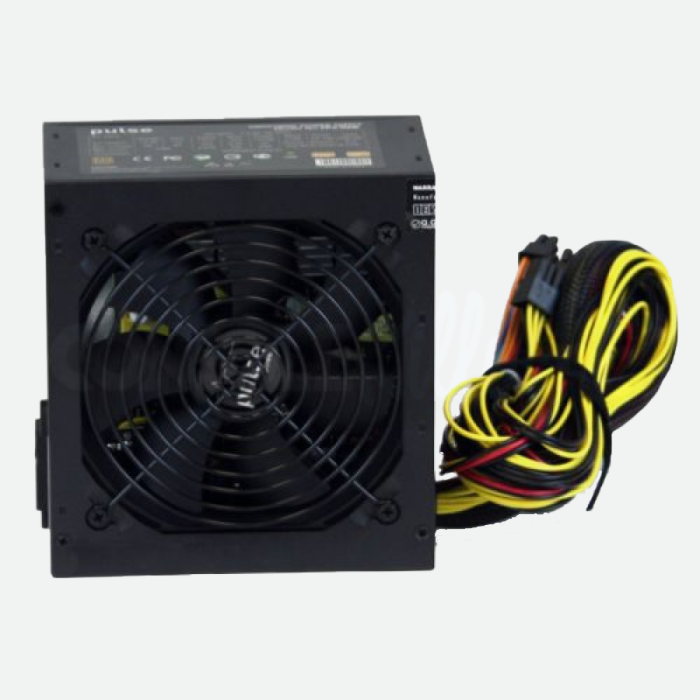

• Pulse Power Plus 500W PSU, ATX 12V, 80PLUS Bronze & ErP, 4 x SATA, PCIe, Fluid Dynamic Fan

  • SKU: ATV-500W RTL
  • EAN: 5055492401991
  • Availability: 50+ In Stock
  • Series: Pulse Power Plus
  • Wattage: 500 W
  • Modular: Fully Wired
  • Rail Design: Single +12v Rail
  • PFC: Active PFC
  • Fan Type: 120mm FDB Fan
  • Noise: < 21 dBA
  • ERP Ready
  • Weight: 1.27 kg
  • Dimensions: 151x86x141mm
  • Package Weight: 1.4500 kg
  • Warranty: 1 Year
  • $30.32

80PLUS Bronze Certified & ERP Ready

  • Compatible with Intel ATX 12V v.2.3 and EPS 12V v.2.92 standards
  • Single +12v rail provide more stability and safer power output
  • Silent FDB 120mm fan for best overall airflow and heat dissipation
  • Over voltage protection, Over power protection, Short Circuit protection, Thermal overload cut-off protection
  • Safety agency approval: CE, CB
  • Low noise and ripple
  • This 12V ATX PC Power Supply is the best choice for your Desktop Computer
  • 80+ Bronze Certified
  • Compatability: ATX 12V v.2.3 and EPS 12V v.2.92
  • Connectors:
    • 1 x 20+4 Pin Main
    • 1 x 4+4 Pin 12V
    • 4 x SATA
    • 3 x 4-Pin Molex
    • 1 x 6-Pin PCI-e
    • 1 x Floppy Drive
  • Fan Bearing: Fluid / Hydraulic Bearing
  • Protection: OVP / UVP / OTP / OCP / OLP / OPP / SCP
AC INPUT: 100-240 VAC 3.5/7A 60/50Hz
DC +3.3V +5V +12V1 -12V +5VSB
Output 6A 8A 36A 0.5A 2A

Designed to conform to the new EuP Lot 6 laws, The Pulse PLus 500W PSU is an 80+ Bronze Certified unit that offers a minimum of 85% performance at 50% load. Ideal for system integrators, this unit features a low noise 12cm fan, a black coated chassis and sufficient cabling to support most entry to mid level system builds.

ManufacturerPulse Technology
BuyBack Product SKUNo
PSU Form FactorATX
ConditionBrand New
