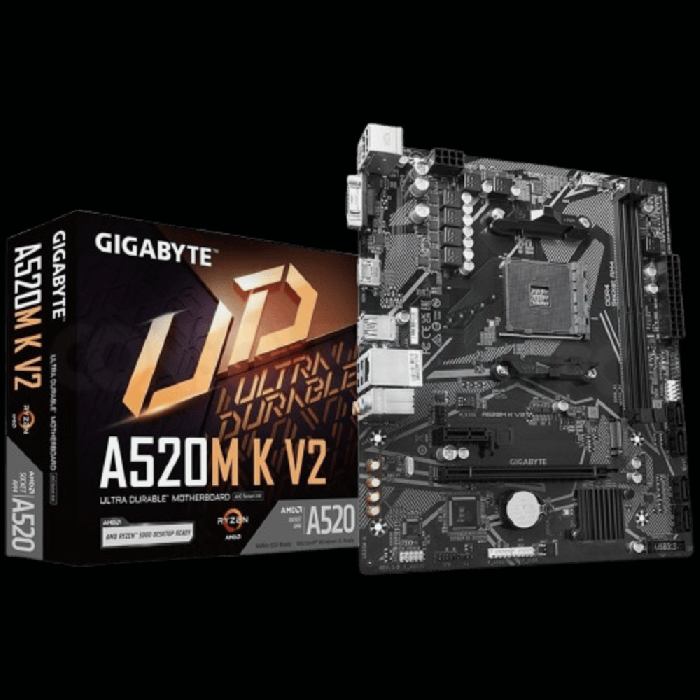

Gigabyte A520M K V2 AMD AM4 Micro-ATX Motherboard | DDR4 | M.2 | HDMI

Special Price £49.99 Regular Price £69.99

In stock

SKU

A520M K V2

Key Features

Gigabyte AMD A520M Micro-ATX Motherboard – Socket AM4, Ultra NVMe M.2 Slot, High-Speed DDR4 XMP Up to 5100MHz, Realtek GbE LAN, HDMI 2.1

Build a rock-solid, high-efficiency desktop setup with the Gigabyte AMD A520M Micro-ATX Motherboard. Fully optimized to harness the power of AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, and 3000 Series processors, this budget-friendly powerhouse delivers incredible everyday system stability. Featuring dual-channel DDR4 memory slots supporting extreme memory scaling up to a blistering 5100MHz (O.C.), alongside a dedicated ultra-fast PCIe 3.0 x4 NVMe M.2 socket for lightning-quick boot and loading times, it eliminates system lag. Outfitted with next-generation HDMI 2.1 support for crisp 4K visual throughput, high-definition Realtek 7.1 audio, and a premium Realtek Gigabit LAN controller for stutter-free online networking, it is the absolute perfect choice for space-saving home, office, and light gaming builds.

Detailed Specifications

Motherboard Manufacturer	GIGABYTE
Chipset Architecture	AMD A520 Chipset Platform
Processor Socket Interface	AMD Socket AM4 Layout
CPU Compatibility	AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors
System Memory Layout	2 x DDR4 DIMM Sockets (Dual-Channel Architecture \| Supports up to 64 GB) Single Module Max Capacity: 32 GB
Memory Frequency Profiles	Supports DDR4 5100(O.C.) / 4800(O.C.) / 4400(O.C.) / 3600(O.C.) / 3200 / 2933 / 2667 / 2400 MHz Supports Extreme Memory Profile (XMP) & Non-ECC Unbuffered Modules
Integrated Graphics Output	1 x HDMI 2.1 Port (Max Resolution: 4096x2160 @60 Hz with HDCP 2.3 & HDR) 1 x D-Sub (VGA) Port (Max Resolution: 1920x1200 @60 Hz) Maximum Shared Graphics Memory: 16 GB
Expansion Slots Layout	CPU: 1 x PCI Express x16 Slot (PCIe 3.0 running at full x16 mode) Chipset: 1 x PCI Express x1 Slot (PCIe 3.0 running at x1 mode)
High-Speed Storage Interfaces	M.2 Storage: 1 x M.2 Socket 3 connector (M key, Type 2280 NVMe PCIe 3.0 x4/x2 & SATA SSD support) SATA Storage: 4 x SATA 6Gb/s connectors (Supports RAID 0, RAID 1, and RAID 10 configurations)
Network LAN System	Realtek® GbE LAN Chip (High-Speed 1 Gbps / 100 Mbps Data Link)
High Definition Audio Eco-system	Realtek® Audio CODEC \| High Definition Audio Interface Supports 2/4/5.1/7.1-channel Sound output configuration
Universal Serial Bus (USB) Portfolio	Rear Panel: 4 x USB 3.2 Gen 1 ports + 2 x USB 2.0/1.1 ports Internal Headers: 2 x USB 3.2 Gen 1 ports + 4 x USB 2.0/1.1 ports
Back Panel Hardware Ports	1 x PS/2 Keyboard/Mouse port \| 1 x HDMI port \| 1 x D-Sub port 4 x USB 3.2 Gen 1 ports \| 2 x USB 2.0/1.1 ports \| 1 x RJ-45 LAN port 3 x Audio Ports (Line In, Line Out, Mic In)
Internal Integration Connectors	1 x 24-pin Main ATX Power \| 1 x 8-pin ATX 12V Power \| 1 x CPU Fan Header 1 x System Fan Header \| 1 x Front Panel Audio Header \| 1 x TPM Header (2x6 pin) 1 x Clear CMOS Jumper \| 1 x Chassis Intrusion Header
Hardware Health Monitoring	Voltage, Temperature, and Fan Speed Detection \| Fan Fail Warning \| Fan Speed Control
BIOS & System Utility Firmware	1 x 128 Mbit Flash ROM \| Licensed AMI UEFI BIOS firmware platform PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 \| Supports Q-Flash & @BIOS
Chassis Form Factor Dimensions	Micro ATX Form Factor Structure: 23.3 cm x 19.8 cm
Operating System Support	Microsoft Windows® 11 64-bit \| Windows® 10 64-bit Readiness
Condition	Brand New
