||DDR/4 (Dual Channel)
||8 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
||AMD Ryzen 3rd Gen CPUs:
1 x PCIe 4.0/3.0 x16 (x16 mode)
Ryzen 2nd Gen CPUs:
1 x PCIe 3.0 x16 (x16 mode)
Ryzen 1st/2nd Gen CPUs:
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
2 x PCIe 4.0 x1
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen
with Radeon Vega Graphics Processors
|Multi GPU Supports
||Supports AMD CrossFireX Technology
||1 x HDMI
1 x Display Port
||Realtek S1200A 8-channel high definition audio CODEC
|USB Port Supports
||1 x USB 3.2 Gen2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back),4 x USB 2.0
6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid)
|Internal I/O connectors
||2 x Aura RGB Strip
1 x Addressable Gen 2
2 x USB 2.0
2 x M.2
1 x SPI TPM
8 x SATA 6Gb/s
1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x AIO_PUMP
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
1 x Front audio
1 x System panel
1 x Clear CMOS jumper
1 x COM port
1 x USB 3.2 Gen 1
|Back Panel I/o Ports
||1 x PS/2 keyboard/mouse
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x Optical S/PDIF out
5 x Audio jacks
4 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
ASUS Wi-Fi module
||Intel Wireless-AC 9260
2x2 Wi-Fi 5(802.11 a/b/g/n/ac) with MU-MIMO support
Supports channel bandwidth: HT20/HT40/HT80/HT160
||2 x SATA 6Gb/s cables
1 x IO Shield
1 x M.2 Screw Package
1 x Support DVD
1 x TUF Gaming Sticker
1 x TUF Certification card
1 x ASUS 2T2R Wi-Fi antennas
1 x User manual

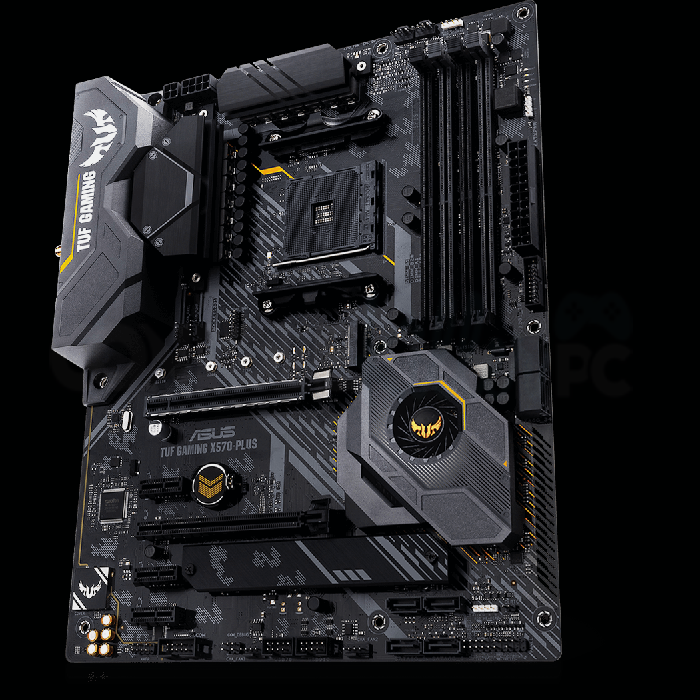

TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
ROCK SOLID PERFORMANCE:
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.
Large, high-mass heatsink with extensive surface that covers the VRM and choke areas.
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
Active Chipset Heatsink
A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Active Chipset Heatsink Solution
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The TUF Gaming X570-Plus (Wi-Fi) features an actively cooled heatsink to prevent throttling during sustained transfers.
Custom Delta Superflo Fan
The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.
A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
Comprehensive Fan Controls
TUF Gaming X570-Plus (Wi-Fi) features the most comprehensive fan controls ever, configurable via Fan Xpert 4 and our award-winning UEFI BIOS.
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
TUF gaming alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
TUF Gaming X570-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
Exclusive Gigabit Ethernet
Experience ultra-fast gaming with the ASUS-exclusive Realtek L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.
Integrated Wi-Fi 5
TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster - so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X - with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!
AMD X570 Chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
The high-performance 3rd Gen AMD Ryzen processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.
- AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD RyzenTMprocessors
- Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability
- Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
- Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
- Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
- Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
