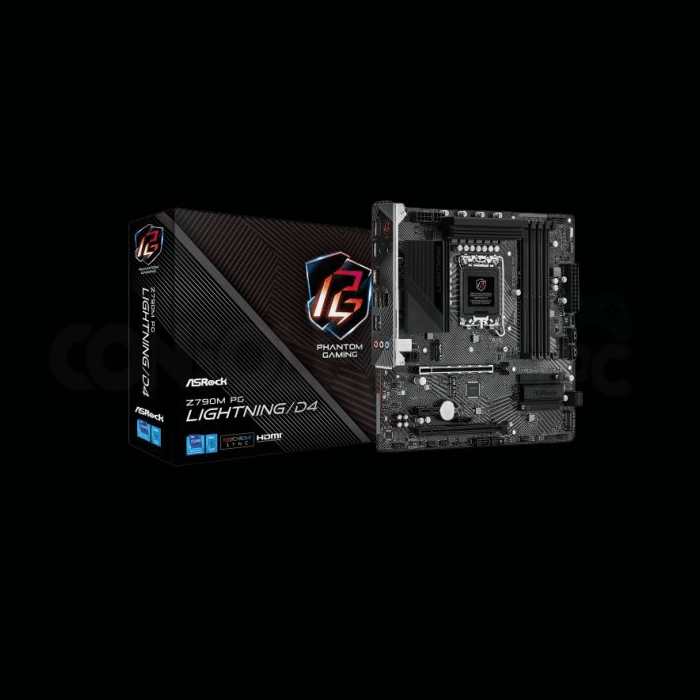

Asrock Z790M PG LIGHTNING/D4, Intel Z790, 1700, Micro ATX, 4 DDR4, HDMI, GB LAN, PCIe4, 2x M.2

Asrock Z790M PG LIGHTNING/D4, Intel Z790, 1700, Micro ATX, 4 DDR4, HDMI, GB LAN, PCIe4, 2x M.2

£179.99

In stock

Only 2 left

SKU

Z790M PG LIGHTNINGD4

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Add to Compare Add to Wish List

Key Features

Product Details
Type	Desktop
Socket	Intel 1700
Chipset	Intel Z790
Maximum Memory	128GB
RAM Slots	4 x DIMM
RAM Speed	Up to 5333+(OC)
Graphics	Integrated Graphics
Graphics Port	1 x HDMI
PCI/PCI Express	1 x PCIe 4.0 x16 (supports x16 mode) 1 x PCIe 3.0 x16 (supports x4 mode) 1 x PCIe 3.0 x1
Storage	4 x SATA III 1 x M.2 (2260/2280) - PCIe 1 x M.2 (2280) - SATA & PCIe
LAN	GB LAN
Back Panel I/o Ports	2 x Antenna Mounting Points 1 x HDMI 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 4 x USB 3.2 Gen1 2 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
Internal I/O Connectors	1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x RGB LED 3 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 4 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x 4 pin 12V 1 x Front Panel Audio 1 x Thunderbolt AIC 2 x USB 2.0 1 x USB 3.2 Gen1 1 x Front Panel Type C USB 3.2 Gen1
Accessories	1 x User Manual 2 x SATA Data Cables 3 x Screws for M.2 Sockets
Package Weight	1.3500 kg
Warranty	1 Year
Condition	Brand New

- Z790M PG Lightning/D4
  - Supports 13th Gen & 12th Gen Intel® Core™ Processors
  - 10+1+1 Phase Power Design, Dr.MOS for VCore+GT
  - 4 x DDR4 DIMMs, supports up to 5333+(OC)
  - 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
  - Graphics Output Options: 1 HDMI
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  - 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
  - 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
  - Intel® 1G LAN

More Information
Refurbished	No
Condition	Brand New
