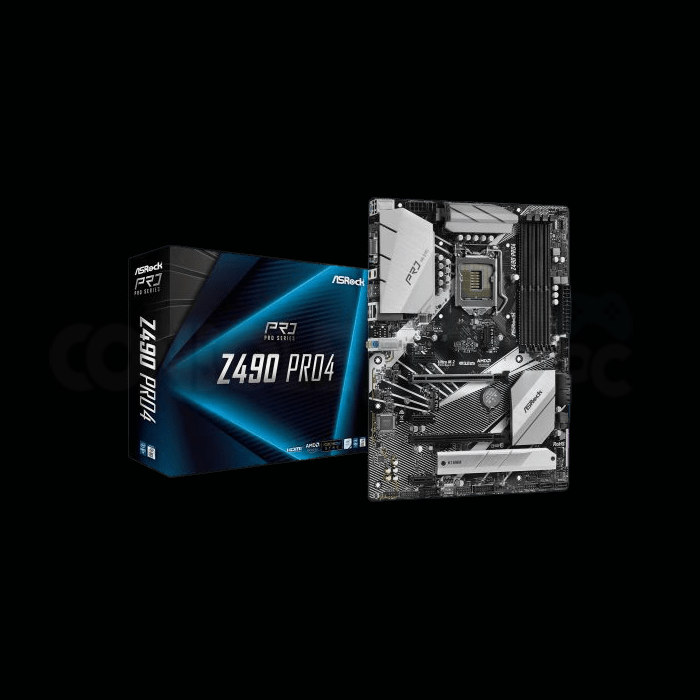

• Asrock Z490 PRO4, Intel Z490, 1200, ATX, 4 DDR4, XFire, VGA, HDMI, M.2


  • SKU: ASMBZ490PRO4
  • EAN: 4710483930751
  • Availability: 5+ In Stock
  5 people view today
  • Asrock Z490 PRO4
  • Motherboard Type: Desktop
  • Socket: intel 1200
  • Chipset: intel Z490
  • Maximum Memory: 128GB
  • 3 Years Warranty
  • $270.71

 Product Details

MotherBoard Type

Desktop
Socket
Intel 1200
ChipsetIntel Z490
Maximum Memory128 GB
Memory TypeDDR4 (Dual Channel)
Storage

6 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe
1 x M.2 (2260/2280/22110) - SATA & PCIe

Graphics

Supports Intel HD Graphics

Graphics Port1 x VGA
1 x HDMI
USB Port Supported

2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)
4 x USB 2.0 (2 at back, 2 at mid-board)

Audio7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Internal I/O connectors
1 x COM
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Audio
1 x Thunderbolt AIC
1 x USB 2.0
2 x USB 3.2 Gen1
Back Panel I/o Ports

2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 2.0
1 x RJ-45
HD Audio Jacks

PCL Express

2 x PCIe 3.0 x16
3 x PCIe 3.0 x1

LANGB LAN
Accessories2 x SATA Data Cables
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Package Weight1.7000 kg
Warranty3 Years
Condition New


Everything You Need For Computing



  • Supports 10th Gen Intel® Core™ processors (Socket 1200)
  • 10 Power Phase Design
  • Supports DDR4 4400MHz+ (OC)
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2(Key E) For WiFi
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI, D-Sub
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type-A+C), 6 USB 3.2 Gen1 (4 Front, 2 Rear)
  • Intel® Gigabit LAN
Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


Base Frequency Boost (BFB) Technology

Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.


10 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.


Heat Dissipating PCB Technology

Luxurious features extend to the onboard heat dissipating PCB points. Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees!


Rule your own Lighting Way - Polychrome RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Intel LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!


A Solid M.2-Solution Performer

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.


PCI-e Steel Slot

The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

Dual USB 3.1 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

M.2 (Key E) for WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.


Super Alloy Motherboard

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.


Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.


Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
ManufacturerAsrock
ColorBlack
BuyBack Product SKUNo
Motherboard Form FactorATX
ChipsetNo
Motherboard TypeDesktop
Processor SocketNo
RAM TechnologyDDR4 (Dual Channel)
Graphics ProcessorIntel
RAM Slots4 X DIMM
Maximum Memory128GB
RefurbishedNo
ConditionBrand New
