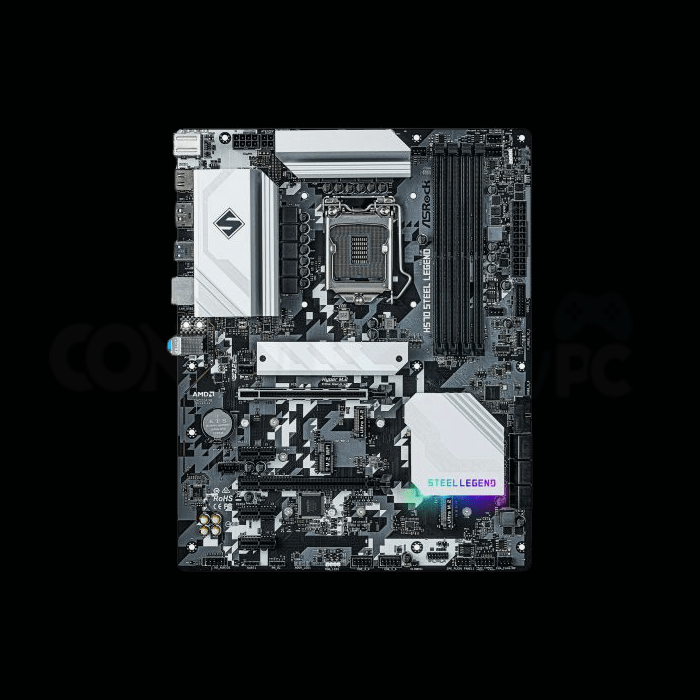

Asrock H570 STEEL LEGEND, Intel H570, 1200, ATX, 4 DDR4, XFire, HDMI, DP, 2.5G LAN, RGB, 3x M.2

£279.99

Out of stock

SKU

H570 STEEL LEGEND

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Key Features

Product Details

Type	Desktop
Socket	Intel 1200
ChipSet	Intel H570
Form Factor	ATX
USB Ports Supported	2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back) 6 x USB 3.2 Gen1 (2 at back, 4 at mid-board) 6 x USB 2.0 (2 at back, 4 at mid-board) 1 x USB 3.2 Gen2x2 connector Type-C at mid-board
Memory Type	DDR4 (Dual Channel)
Graphics	Integrated Graphics
Graphics Port	1 x HDMI 1 x DisplayPort
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Internal I/O connectors	1 x SPI TPM 1 x Power LED and Speaker 2 x RGB LED 2 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 4 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x 4 pin 12V 1 x Front Audio 1 x Thunderbolt AIC 2 x USB 2.0 2 x USB 3.2 Gen1 1 x Front Panel Type C USB 3.2 Gen2x2 Header
Back Panel I/o Ports	1 x PS/2 Mouse/Keyboard 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen1 2 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
LAN	2.5GB LAN
PCL Express	1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 3 x PCIe 3.0 x1
Warranty	3 Years
Condition	New

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
8 Phase Power Design
Supports DDR4 4800MHz (OC)
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1
1 x M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)
Rear USB 3.2 Gen2 Type A+C (10Gb/s)
6 x USB 3.2 Gen1 (2 x Rear, 4 x Front)
6 x USB 2.0 (2 x Rear, 4 x Front)
Dragon 2.5 Gigabit LAN
ASRock Polychrome SYNC
