Asrock H470M-HDV/M.2, Intel H470, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

Asrock H470M-HDV/M.2, Intel H470, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

£58.99

Out of stock

SKU

H470M-HDV/M.2

Skip to the end of the images gallery

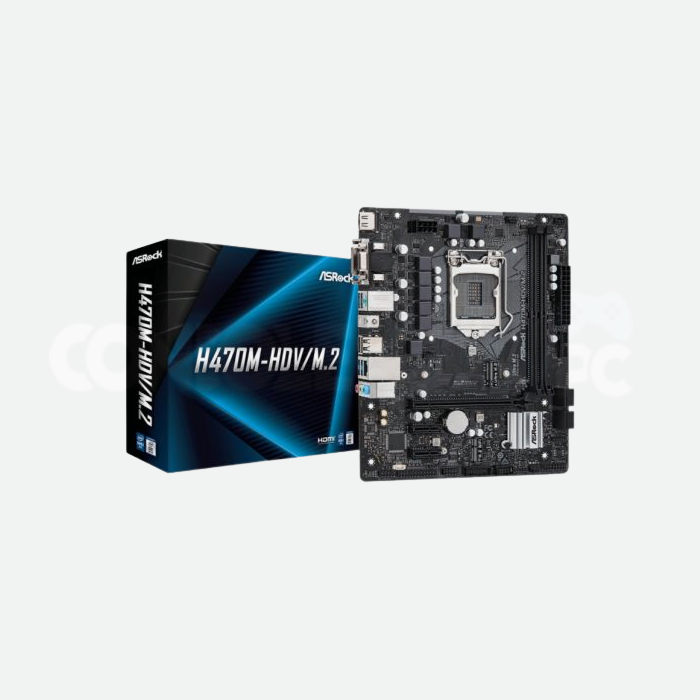

main product photo

Skip to the beginning of the images gallery

Add to Compare Add to Wish List

Key Features

Product Details
Type	Desktop
Socket	Intel 1200 - Comet Lake
Form Factor	Micro ATX
Chipset	Intel H470
Maximum Memory	64GB
RAM Slots	2 x DIMM
RAM Speed	2933 / 2800 / 2666 / 2400 / 2133 MHz
Graphics	Supports Intel HD Graphics
Graphics Port	1 x DVI-D 1 x HDMI 1 x VGA
PCI/PCI Express	1 x PCIe 3.0 x16 2 x PCIe 3.0 x1
Storage	4 x SATA III 1 x M.2 (2260/2280) - SATA & PCIe
LAN	GB LAN
Back Panel I/o Ports	1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x DVI-D 1 x HDMI 2 x USB 2.0 4 x USB 3.2 Gen1 1 x RJ-45 LAN HD Audio Jacks
Internal I/O Connectors	1 x Print Port 1 x COM Port 1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x CPU Fan 1 x CPU/Water Pump Fan 2 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Audio 2 x USB 2.0 2 x USB 3.2 Gen1
Accessories	Quick Installation Guide Support CD I/O Shield 2 x SATA Data Cables 2 x Screws for M.2 Sockets
Package Weight	0.8270 kg
Warranty	2 Year Replacement Warranty
Condition	Brand New

- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- 7 Power Phase Design
- Supports DDR4 2933 MHz
- 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- Intel® Gigabit LAN

More Information
Refurbished	No
Condition	Brand New
