Asrock B450M PRO4, AMD B450, AM4, Micro ATX, 4 DDR4, XFire, VGA, DVI, HDMI, M.2

Asrock B450M PRO4, AMD B450, AM4, Micro ATX, 4 DDR4, XFire, VGA, DVI, HDMI, M.2

£83.99

Out of stock

SKU

B450M PRO4R2.0

Skip to the end of the images gallery

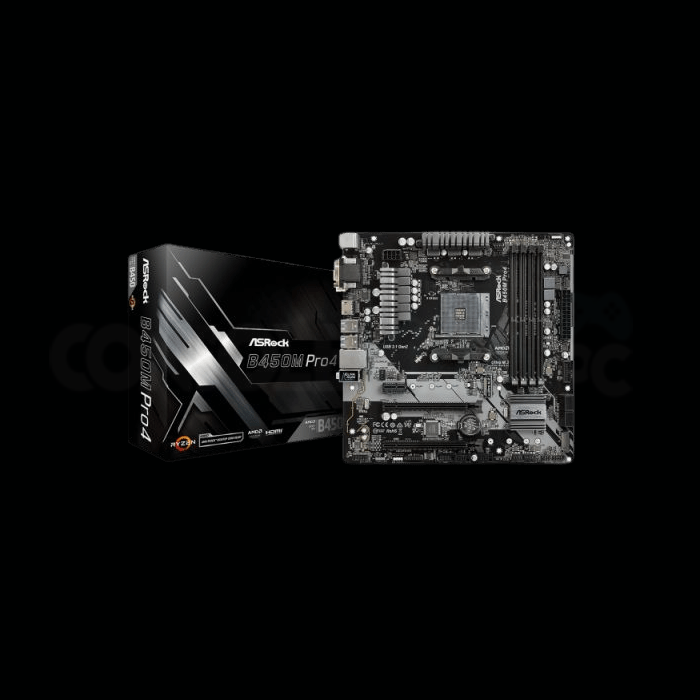

main product photo

Skip to the beginning of the images gallery

Add to Compare Add to Wish List

Key Features

Product Details
Type	Desktop
Socket	AMD AM4
Chipset	AMD B450
Maximum Memory	64GB
RAM Slots	4 x DIMM
RAM Speed	3200+(OC) / 2933/2667/2400/2133 MHz
Graphics	Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
Graphics Port	1 x HDMI 1 x VGA 1 x DVI-D
PCI/PCI Express	Summit & Pinnacle Ridge CPUs: 1 x PCIe 3.0 x16 1 x PCIe 2.0 x16 Raven Ridge CPUs: 1 x PCIe 3.0 x16 1 x PCIe 2.0 x16 1 x PCIe 2.0 x1
Storage	4 x SATA III 1 x Ultra M.2 (2242/2260/2280) - PCIe 1 x M.2 (2230/2242/2260/2280) - SATA
LAN	GB LAN
Back Panel I/o Ports	1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x DVI-D 1 x HDMI 2 x USB 2.0 1 x USB 3.1 Gen2 Type-A 1 x USB 3.1 Gen2 Type-C 4 x USB 3.1 Gen1 1 x RJ-45 LAN HD Audio Jacks
Internal I/O Connectors	1 x COM Port 1 x TPM 1 x Chassis Intrusion 1 x Power LED and Speaker 1 x RGB LED 1 x Addressable LED 1 x AMD Fan LED 1 x CPU Fan 1 x CPU/Water Pump Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Audio 2 x USB 2.0 1 x USB 3.1 Gen1
Accessories	Quick Installation Guide Support CD I/O Shield 2 x SATA Data Cables 2 x Screws for M.2 Sockets
Package Weight	1.1660 kg
Warranty	1 Year
Condition	Brand New

- A good-looking and powerful Motherboard
  - - AMD AM4 Socket
    - Supports DDR4 3200+ (OC)
    - 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
    - AMD Quad CrossFireX™
    - Graphics Output:HDMI, DVI-D, D-Sub
    - 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
    - 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
    - 2 USB 3.1 Gen2 (Rear Type-A+C)
    - 6 USB 3.1 Gen1 (2 Front, 4 Rear)
    - Realtek Gigabit LAN

More Information
Refurbished	No
Condition	Brand New
