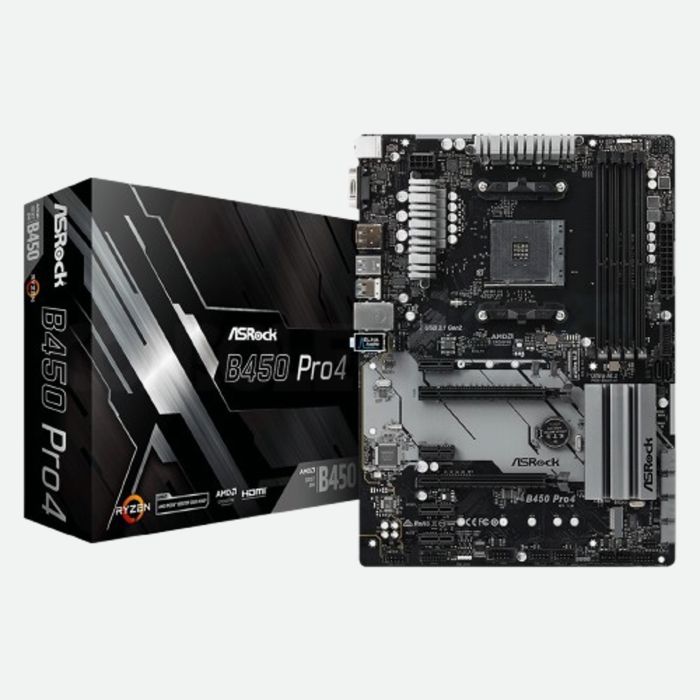

ASRock B450 Pro4 R2.0 AMD AM4 ATX DDR4 Motherboard

Special Price £49.99 Regular Price £89.99

In stock

SKU

B450 PRO4 R2.0

Key Features

GIGABYTE H610M D3W DDR4 (Rev. 1.x) Motherboard Intel LGA1700 Socket, 5+1+1 Hybrid Digital VRM, NVMe PCIe 3.0 x4 M.2, PCIe 5.0 x16 Slot & Micro ATX Form Factor

The GIGABYTE H610M D3W DDR4 (Rev. 1.x) is a reliable Micro ATX motherboard supporting 14th, 13th, and 12th Gen Intel Core processors. Featuring a 5+1+1 Hybrid Digital VRM design, PCIe 5.0 x16 graphics support, NVMe PCIe 3.0 x4 M.2 storage, and Smart Fan 6 cooling, it is built to deliver stability and efficient connectivity for everyday computing and budget builds.

Detailed Specifications

Brand Name	GIGABYTE
Model	H610M D3W DDR4 (Rev. 1.x)
CPU Support	LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset	Intel® H610 Express Chipset
Memory Support	DDR4 3200/3000/2933/2666/2400/2133 MT/s 2 x DDR4 DIMM sockets (Up to 64 GB max, 32 GB single DIMM) Dual channel memory architecture Supports XMP and non-ECC Un-buffered modules
Integrated Graphics	1 x DisplayPort 1.2 (Max 4096x2304 @ 60 Hz, HDCP 2.3) 1 x HDMI 2.1 TMDS compatible (Max 4096x2160 @ 60 Hz, HDCP 2.3)
Expansion Slots	CPU: 1 x PCIe 5.0 x16 slot (runs at x16) Chipset: 1 x PCIe 3.0 x16 slot (runs at x4)
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
Audio	Realtek® Audio CODEC, High Definition Audio (2/4/5.1/7.1-channel)
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless LAN	N/A
USB Ports	Back Panel: 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 Internal Headers: 1 x USB Type-C® (USB 3.2 Gen 1), 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
Internal Connectors	1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan header, 2 x system fan headers, 2 x addressable RGB Gen2 headers (PCB rev. 1.1 or later), 1 x Front panel, 1 x Front audio, 1 x TPM header, 1 x Serial port, 1 x Clear CMOS jumper
BIOS	1 x 128 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor (24.4cm x 22.0cm)
Operating System	Support for Windows 11 64-bit / Windows 10 64-bit
Condition	Brand New
