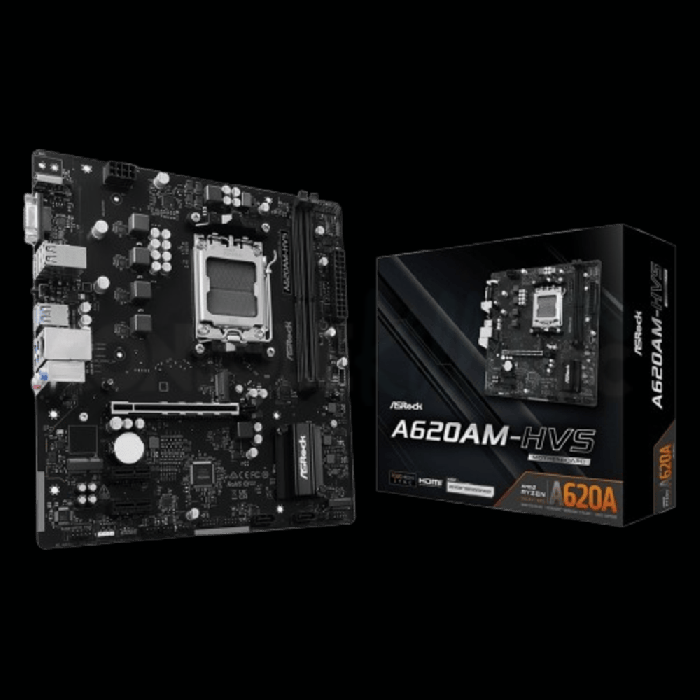

| Motherboard Brand |
ASRock |
| Chipset |
AMD A620A |
| Form Factor |
Micro ATX Form Factor (9.6-in x 9.0-in / 24.4 cm x 22.9 cm)
2oz Copper PCB Architecture |
| CPU Support |
Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors |
| Power & Durability |
4+1+1 Power Phase Design
Dr.MOS for Vcore (Higher efficiency, better thermals) |
| Memory Specifications (DDR5) |
Dual Channel DDR5 Memory Technology (2 x DDR5 DIMM Slots)
Supports DDR5 non-ECC un-buffered memory up to 6800+(OC) MHz
Max. Capacity: 128GB
Supports AMD EXTended Profiles for Overclocking (EXPO) & Intel® XMP |
| Expansion Slots |
CPU: 1 x PCIe 4.0 x16 Slot (Runs at Gen4x16 with 9000/7000 series, Gen4x8/x4 with 8000 series)
Chipset: 2 x PCIe 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
15µ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage Solutions |
CPU: 1 x Hyper M.2 Socket (M2_1, Key M, Type 2280 PCIe Gen4x4 64 Gb/s mode)
Chipset: 1 x Ultra M.2 Socket (M2_2, Key M, Type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 32 Gb/s modes)
2 x SATA3 6.0 Gb/s Connectors
Supports NVMe SSD as boot disks |
| RAID Configurations |
SATA Storage: RAID 0, RAID 1
M.2 NVMe Storage: RAID 0, RAID 1, RAID 10 (RAID 10 requires additional expansion cards) |
| Graphics Support |
Integrated AMD RDNA™ graphics architecture (Actual support varies by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible (Supports HDR, HDCP 2.3 & Max 4K @ 120Hz)
1 x D-Sub / VGA (Max. Resolution Full HD 1920x1080 @ 60Hz) |
| Audio Codec |
7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN Connectivity |
Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) |
| USB Interface |
Rear: 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Ports
Front Headers: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Ports
*All USB ports support ESD Protection |
| Internal Headers & Cooling |
1 x Power LED & Speaker | 1 x RGB LED (12V) | 3 x Addressable LED (5V)
1 x 4-pin CPU Fan Connector with Smart Control
3 x 4-pin Chassis/Water Pump Fan Connectors (3A/36W, Auto Detect)
1 x 24-pin ATX Power | 1 x 8-pin 12V Hi-Density Power | 1 x Front Audio |
| Rear Panel I/O Ports |
2 x Antenna Mounting Points | 1 x D-Sub | 1 x HDMI | 4 x USB 3.2 Gen1 Type-A
4 x USB 2.0 Ports | 1 x RJ-45 LAN | 1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone |
| EZ DIY & Customization |
BIOS Flashback Button (Flash via USB without CPU/RAM)
ASRock Post Status Checker (Colored Diagnostic LEDs for CPU/DRAM/VGA/BOOT)
ASRock Polychrome SYNC & SignalRGB Official Partnership Integration |
| Software & UEFI Eco-System |
ASRock Motherboard Utility (A-Tuning) & ASRock Auto Driver Installer
ASRock Full HD UEFI & ASRock Instant Flash |
| Operating System & Certifications |
Microsoft® Windows® 10 64-bit / 11 64-bit
FCC, CE, ErP/EuP Ready |
| Box Accessories |
1 x I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket |
| Condition |
Brand New |
