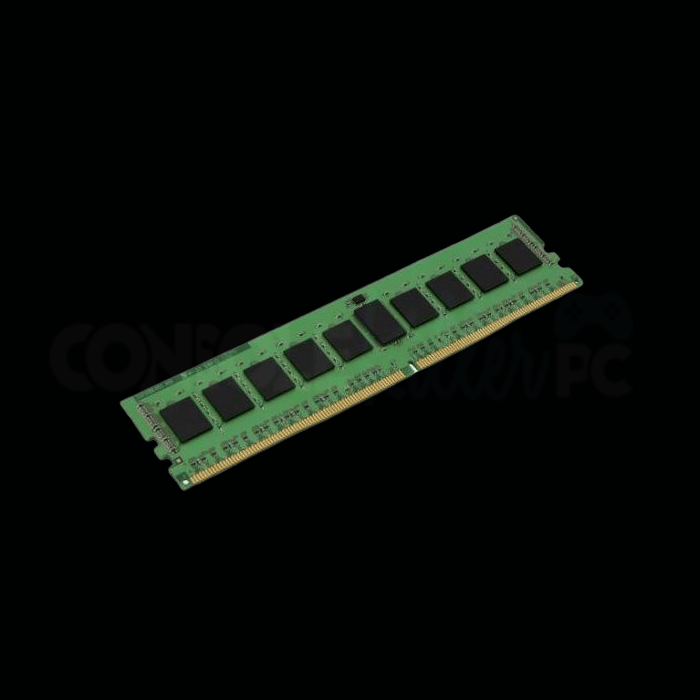

• Kingston 8GB, DDR4, 2666MHz (PC4-21300), CL19, DIMM Memory


  • SKU: D4-8G2666KING19
  • EAN: 7.41E+11
  • Availability: 0+ In Stock
  • Memory Capacity : 8GB
  • Memory Type : DDR4
  • Voltage: 1.2V
  • Pins: 288-pin
  • Non-Ecc
  • Warranty:Lifetime
  • £32.04

Product Details

Capacity 8GB
Series
Kingston ValueRAM
Rank  Single Rank
Compliance PC4-21300
Memory Type DDR4
Data Integrity Check Non-ECC
Memory Speed 2666MHz
CAS Latency CL19
Pins 288-Pins
Heatsink No
RGB LED No
Package Weight 0.0225 Kg
Warranty Lifetime

ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA
components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.


Features
  • Power Supply: VDD=1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP - 2.5V Typical
  • VDDSPD=2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free
Manufacturer Kingston
Color No
BuyBack Product SKU No
Supported Memory Types DDR4-SDRAM
Memory Layout (Modules X Size) No
Memory Clock Speed 2666MHz To 2799MHz
Internal Memory (RAM) 8GB
Internal Memory Type DDR4-SDRAM
Memory Pins 288-Pin
CAS Latency CL19
Refurbished No
Condition Brand New
